KakaoAbsorbing Panel

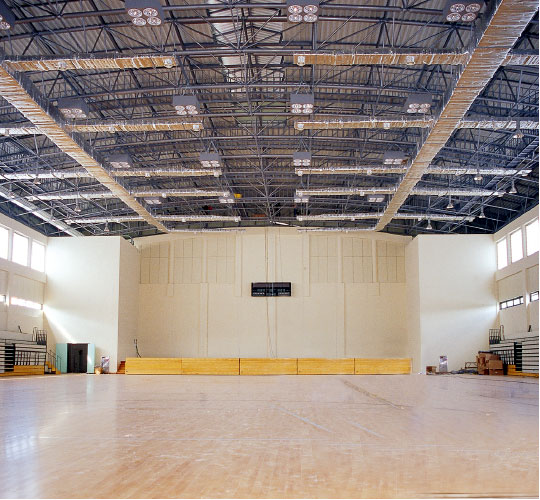

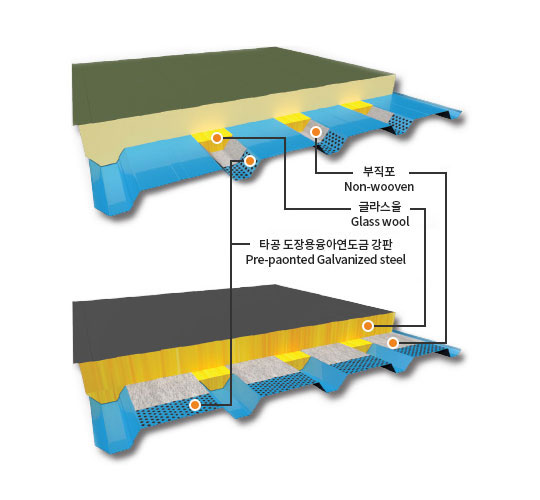

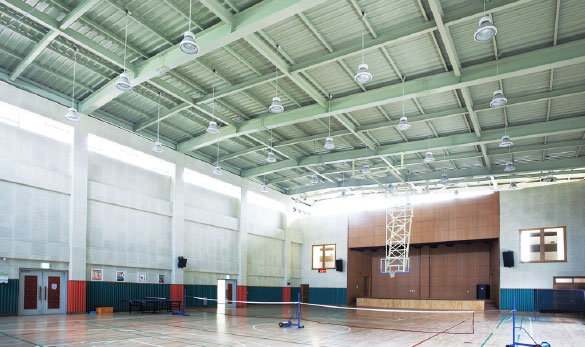

It is a panel utilizing sound-absorbing effect of glass wool which is a porous fabric material that is exposed by punching a galvanized steel sheet, both wall panels and deck panels are produced for diverse application of sound-absorbing performance. It is used for publicly used facilities such as gymnasiums, theaters, cultural performance facilities and schools etc.
Features of Product
Sound-absorbing effect
Safety against a fire
- Product Information
- Product Image
-
Features of Product
-
Sound-absorbing effect
Since it is made of porous materials containing consecutive air holes, it absorbs the wavelength of a sound at the inside of glass wool on its own, resulting in excellent sound-absorbing effect.
Safety against a fire
Proliferation of a fire is prevented by using glass wool which is an incombustible material as an insulator, and it is proper for a fire-resisting structure or a fire zone since it does not generate toxic gases which are harmful to a human body.
-
Specification
-
Wall
Classification Specification Surface material for Both Sides External 0.40~0.8mm PPGI Internal 0.40~0.6mm PPGI Insulator Glass wool+Felt / Mineral Wool+Felt width 2~13m (Recommended Length : 7m) Production Length 1,000m Production thickness 50, 75, 100, 125, 150, 160, 180, 200, 225, 250mm Roof
Classification Specification Surface material for Both Sides External 0.40~0.8mm PPGI Internal 0.40~0.6mm PPGI Insulator Glass wool+Felt / Mineral Wool+Felt width 2~22m Production Length 1,000m Production thickness 50, 75, 100, 125, 150, 160, 180, 200, 225, 250mm Since there may be somewhat differences by factories or products, contact the business department for details.
-
Absorbing Panel
-
Polyurethane Absorbing Deck
