The ALCO Build which is an aluminum composite panel of SY

is proper for internal and external materials for all buildings such as renovation etc. as well as new construction since various high-quality patterns can be realized as a manufacturer of composite panels that has the CCL(Color Coating Line) for the first time domestically.

Inquiries Icon

Product Inquiries 070-4808-1580

Features of Product

Uniformity of color Icon

Uniformity of color

Safety against a fire Icon

Safety against a fire

Durability Icon

Durability

Processability Icon

Processability

Smoothness and lightweight Icon

Smoothness and lightweight

  • Product Information
  • Product Image
  • Affiliate Information Icon

    Affiliate Information

  • Factory #2 in Inju Map Image
    Factory #2 in Inju
    Factory #2 in Inju Image1 Factory #2 in Inju Image2 Factory #2 in Inju Image3 Factory #2 in Inju Image4

    75-82 Injusandan-ro, Inju-myeon, Asan-si, Chungcheongnam-do
    Tel. 070-4808-1987     Fax. 070-4009-3512

  • Features of Product Icon

    Features of Product

  • Uniformity of color Icon Uniformity of color

    It is a manufacturer of composite panels that has the CCL(Color Coating Line) for the first time domesticallyand it is possible to realize diverse colors and high-quality patterns as well as uniformity of color.

    Safety against a fire Icon Safety against a fire

    It is a panel made by incombustible inorganic fillings that have excellent self-extinguishability in addition to advantages of the existing aluminum panels, and is an environment-friendly incombustible architectural finishing material that stability and strength of a building are reinforced.

    Durability Icon Durability

    The surface of Alcobuild/Fr guarantees excellent durability and retention of color by using Kynar500 which is a high polymer fluoride resin paint.

    Processability Icon Processability

    With flexibility of aluminum and high polymer core, it is possible for various processing such as cutting, bending, curving, cutting-out, punching etc.

    Smoothness and lightweight Icon Smoothness and lightweight

    It has an aluminum sandwich structure and maintains excellent smoothness compared to a shingle panel, and since it is lightweight while it has high strength, it reduces the weight of a building by 15~20% than aluminum sheets with the same strength.

  • Certification Icon

    Certification

  • Test report Icon

    Test report

  • Specification Icon

    Specification

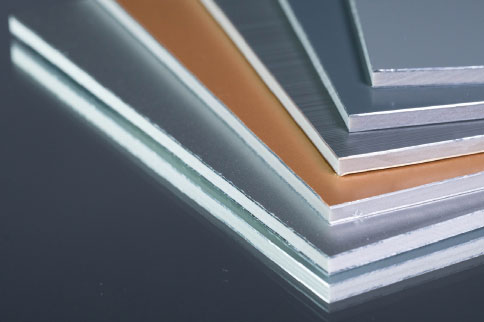

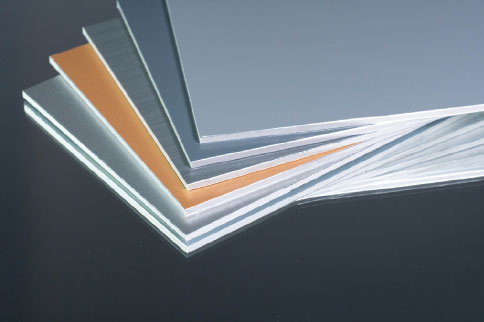

  • Composition AL 0.5T PVdF + 3.0T Inorganic Core + AL 0.5T
    Thickness 3mm, 4mm, 6mm
    Width 1020mm, 1250mm, 1575mm
    Length No Limit (But, it is recommended to bo less than 5,000mm for convenience in transport and handling.)
    Surface Treatment PVDF Painting (22~28㎛)
    Perpendicularity Max ±2.0mm
    Smoothness Max. ±2.0mm(Based on 1,000mm longitudinally and laterally)
    Any bending, torsion phenomenon etc. on the surface is not created.
    Color 45 basic colors [Refer to a aolor chart and samples]
    Other solors may be ordered and produced upon customer’s request.
  • ALCOBUILD Icon

    ALCOBUILD

    • Stone

    • Timber

    • Metal

  • Color Index Icon

    Color Index

  • SY introduced the color coating line for the first time in the industry of domestic aluminum composite panel and various and high-quality patterns that are differentiated from other products can be realized.

    Premium Colors
    • Antique Dark Brown

    • Antique Tan Brown

    • Multi Blue

    • Metalline Black

    • Metalline Gray

    • Metalline Gold

    • Dark Hair Line

    • Art Dark Hair Line

    • Hair Line Browm

    • Real Zinc

    • Zinc Dark Gray

    • Wood

    Metallic Colors
    • SY-101 Silver

    • SY-102 Exotic Silver

    • SY-103 Bright Silver

    • SY-104 Champagne

    • SY-105 Medium Bronze

    • SY-106 Gold

    • SY-107 Copper Penny

    • SY-108 Wine Red

    • SY-109 Gray Silver

    • SY-110 Deep Gray

    • SY-111 Dark Champagne

    • SY-112 Jade

    Solid Colors
    • SY-201 Pure White

    • SY-202 Yellow White

    • SY-203 Ascot White

    • SY-204 Bone White

    • SY-205 Concert White

    • SY-206 Raw Gray

    • SY-207 Dove Gray

    • SY-208 Fashion Gray

    • SY-209 Dark Gray

    • SY-210 Signal Blue

    • SY-211 Soft Blue

    • SY-212 Coral

    • SY-213 Emerald Green

    • SY-214 Pine Green

    • SY-215 Yellow

    • SY-216 Pure Orange

    • SY-217 Crystal Red

    • SY-218 Ivory

    • SY-219 Black

    • SY-220 Dark Brown
