카카오SEG Panel

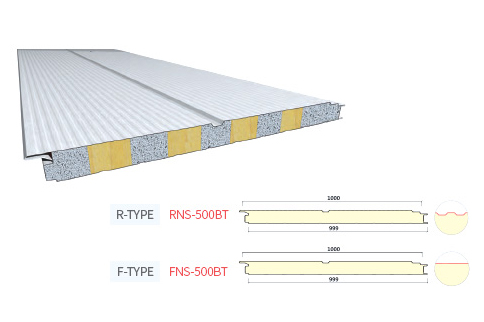

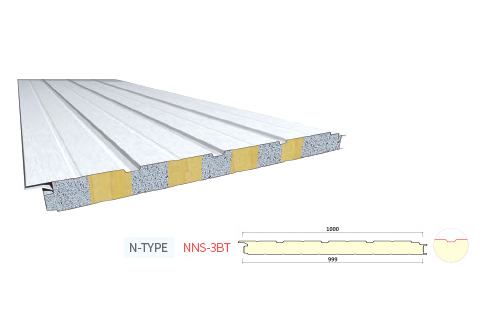

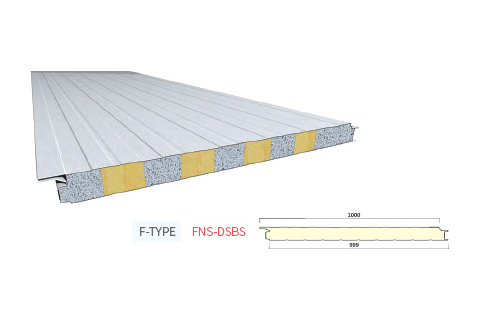

EPS and glass wool are in sequenced array and it has excellent safety against a fire and insulation effect, product safety by sup-plementing features of EPS insulators and gathering advan-tages of glass wool.
Features of Product
Safety against a fire
Constructability
Durability
Economic feasibility
- Product Information

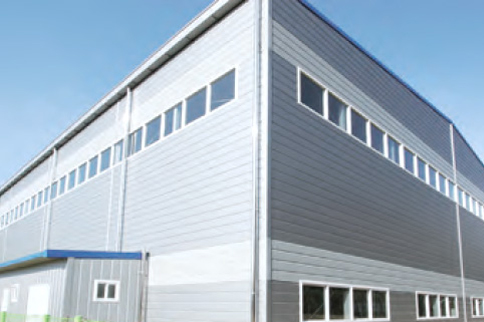

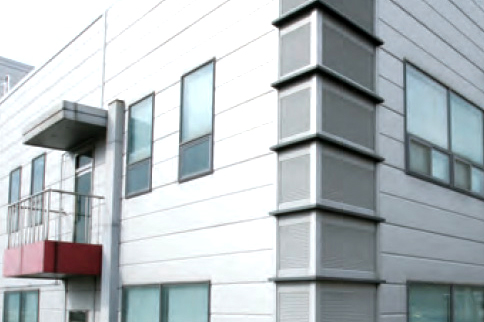

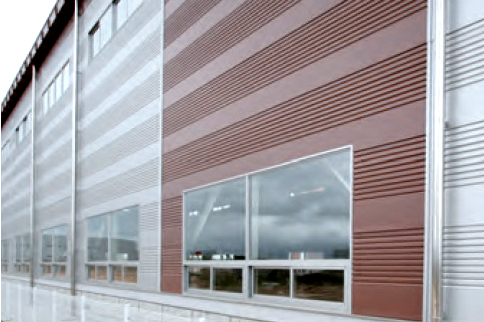

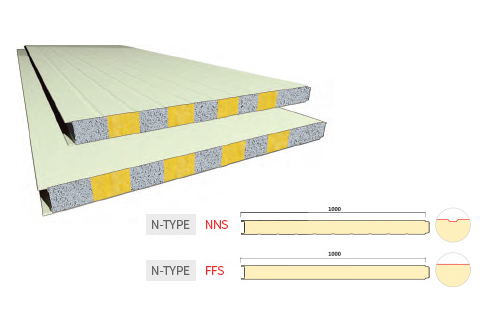

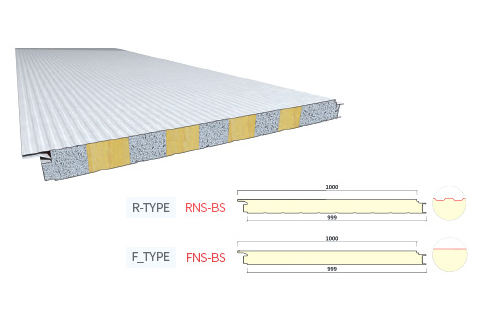

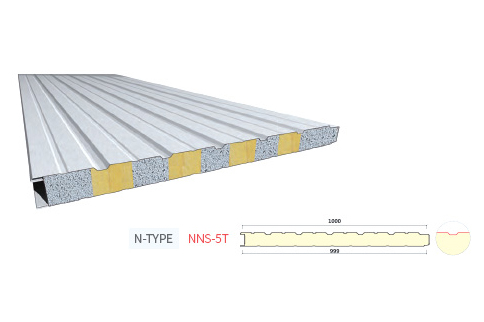

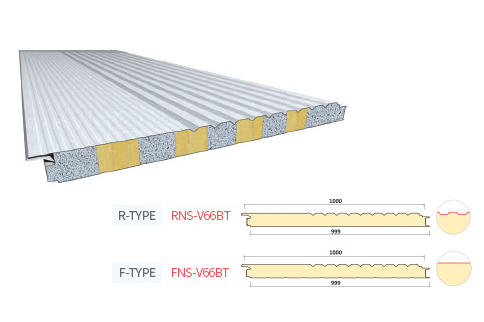

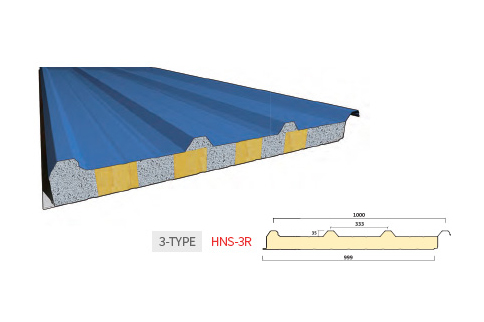

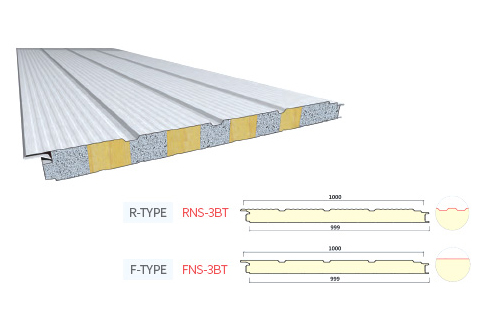

- Product Image
-
Features of Product
-
Safety against a fire
Since glass wool is contained, diffusion of a fire is consider-ably reduced in comparison of the EPS panel and a risk of harmful gases is low.
Constructability
Since the EPS with high strength is contained, it is light and strong and has high stability of a product.
Durability
Since glass wool which is an inorganic product is contained, there is almost no variation in its shape and no corrosion even after a long time has passed.
Economic feasibility
It is a product having advantages of both glass wool and EPS with economic prices.
-
Specification
-
Wall
Classification Specification Surface material for Both Sides External 0.40~0.5mm PPGI Internal 0.40~0.5mm PPGI Insulator SEG : Glasswool+EPS Width 1,000mm Production Length 2 ~ 14m (Recommended Length : 7m) Production Thickness 50, 75, 100, 125, 150mm Roof
Classification Specification Surface material for Both Sides External 0.5~0.8mm PPGI Internal 0.5~0.8mm PPGI Insulator G/W(48, 64, 74kg/㎥)
M/W(80~110kg/㎥)Width 1,000mm Production Length 2 ~ 22m Production Thickness 50, 75, 100, 125, 150, 200, 250mm Since there may be somewhat differences by factories or products, contact the business department for details. Surface undulation may be caused according to thickness of a steel coil and the the shape of a product but there is no difference in performance of the product.
-
