External Panel System
Reno Metal System
Reno Metal panel beautifully recreates the exterior of an aged building with high-quality building materials using a smooth four-sided finish method by applying the DEEP DRAWING method, SY's patented technology. Through simple construction, you can also reduce the construction period and construction cost compared to the existing aluminum and exterior composite panels. Breathe new life into old buildings with Reno Metal panels that recreate old buildings in a beautiful and valuable way.
Features of Product
Remodeling building materials
Excellent waterproofness
Excellent smoothness
Economical efficiency
Aesthetics
- Product Information

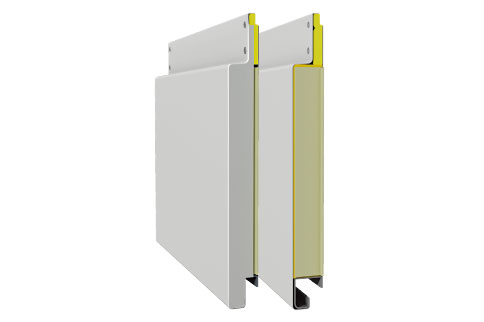

- Product Image
-
Features of Product
-
Remodeling building materials
Reno Metal panel is an innovative panel that recreates aging buildings in a beautiful and valuable way, and it is a building exterior material that can be applied in a variety of ways.
Excellent smoothness
Excellent smoothness and excellent structural strength are realized through burring and side mold reinforcement in the bolt area.
Economical efficiency
It can express clean and modern aesthetics beyond aluminum composite panel, and construction cost is reduced by shortening the construction period because construction is simple.

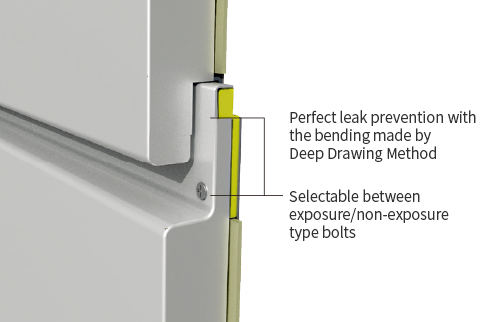

Excellent waterproofness

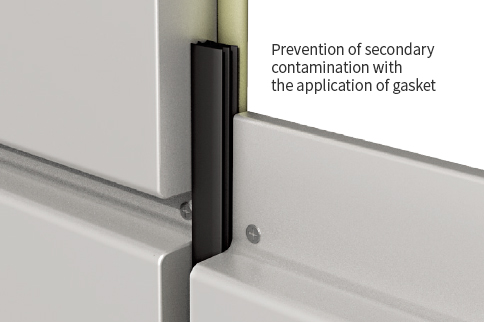

The external steel plate is finished without cutting edges by applying Deep Drawing technology, and foam tape is attached to the upper and lower joints to prevent the risk of leakage.
Aesthetics
The round-shaped, four-sided finish without cutting will add sophistication to the exterior of the building and further maximize the value of the building.
-
Specification
-

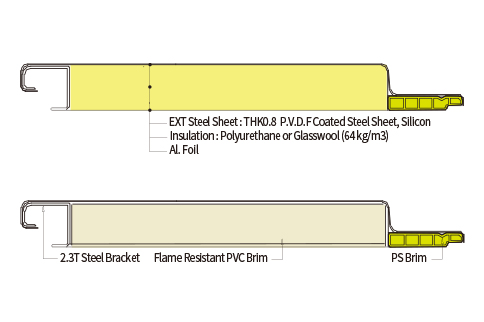

Classification Specification Surface material for Both Sides External 0.8mm GI (fluororesin coating or silicone polyester) Internal Aluminum kraft paper Insulator PIR (35㎏/㎥)
Glasswool (30㎏/㎥)Width (joint M) 500, 600, 700, 800, 900, 1,000mm Recommended length 1,500 ~ 2,000mm (matters other than the recommended length can be negotiated)
Corner Panel / L1, L2 : 250 ~ 1,000
L1+L2 : min.500 ~ max.2,000Joint width 20mm Production thickness 33mm Since there may be somewhat differences by factories or products, contact the business department for details.
-
Detail
-

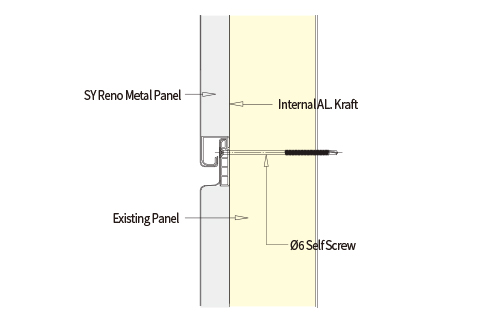

Detailed Drawing of Base

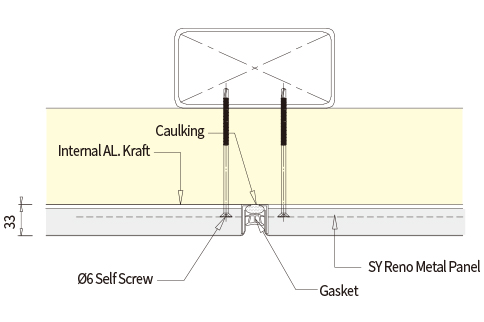

Detailed Drawing of Joint
Detailed Drawing of Corner
Detailed Drawing of Parabet
-
Reno Metal System
-
-
Installation
-
-
Application
-

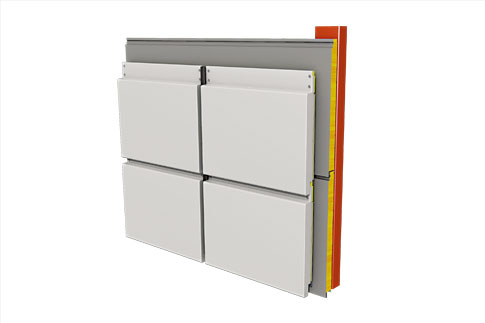

샌드위치 패널 위 리노메탈

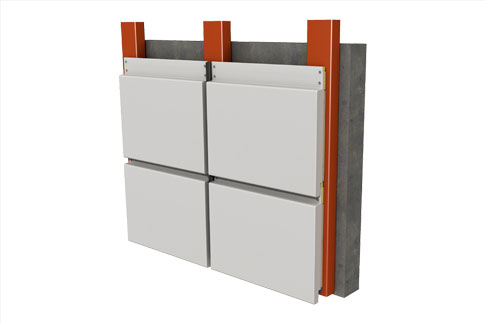

벽돌 구조물 위 리노메탈
콘크리트 구조물 위 리노메탈
