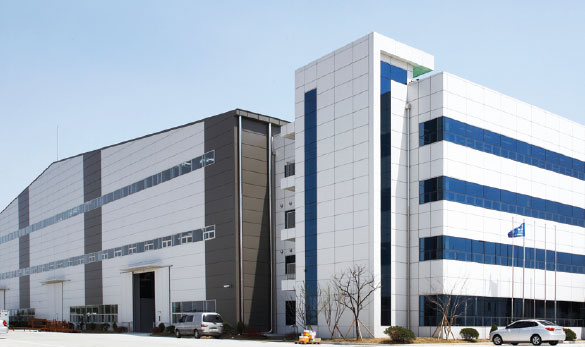

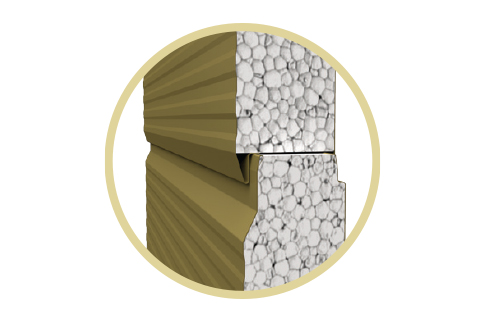

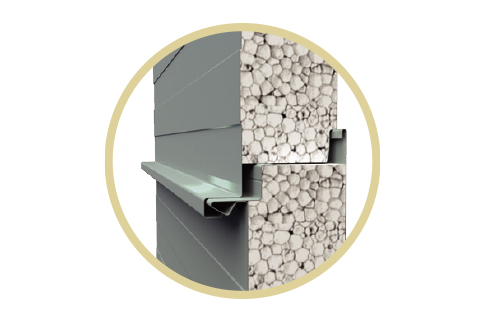

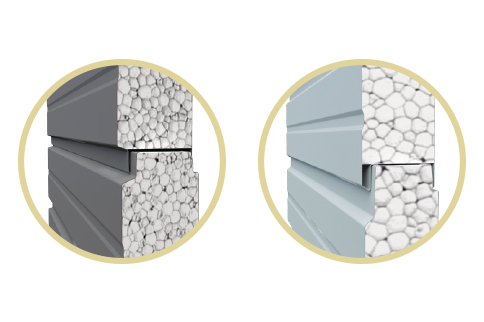

The EPS panel is also called as a styrofoam panel and is the most commonly used external panel for a building, and it is widely used because of its high strength enough to play a role as a structure of a building as well as its economical price and excellent insulation performance. SY produces a flame retardant EPS which has more improved safety against a fire than general EPS by injecting flame resisting materials EPS grains.
Features of Product
Convenient constructability
Safety against a fire
Elegant external appearance
- Product Information

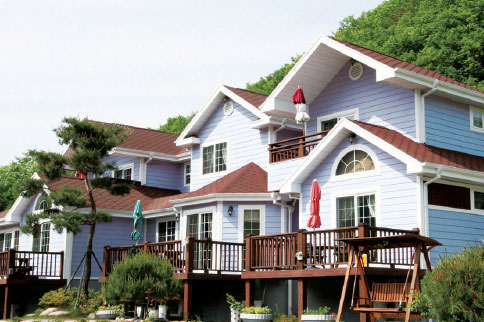

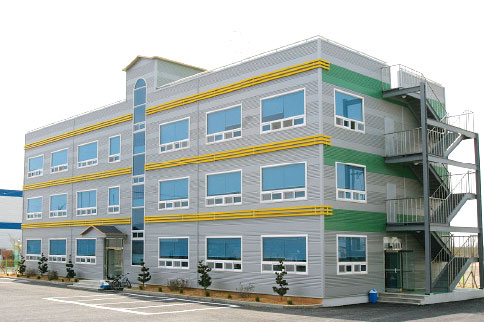

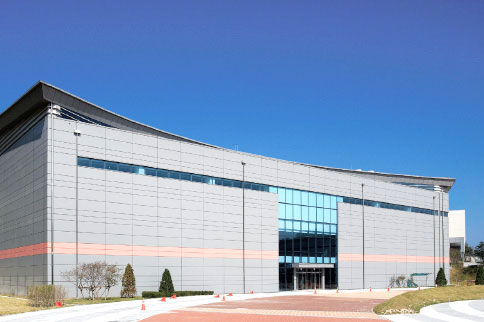

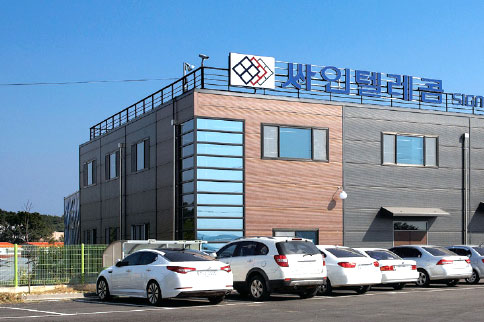

- Product Image
-
Features of Product
-
EPS Panel

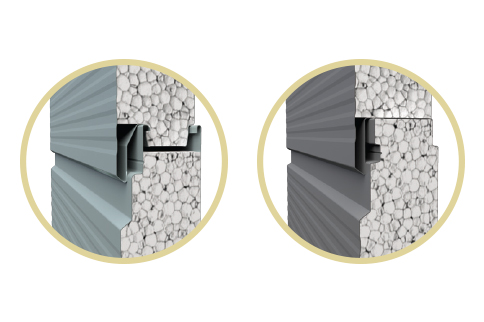

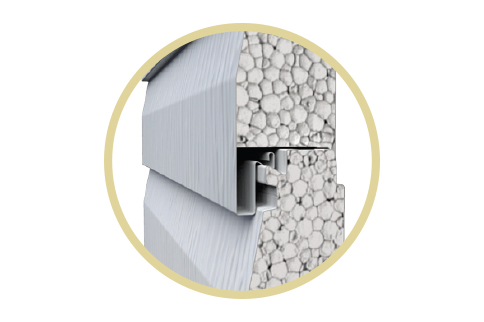

Convenient constructibility
It has the lightest specific gravity among panel insulators, and it has also excellent strength so it free and convenient in calculating loads and construction.

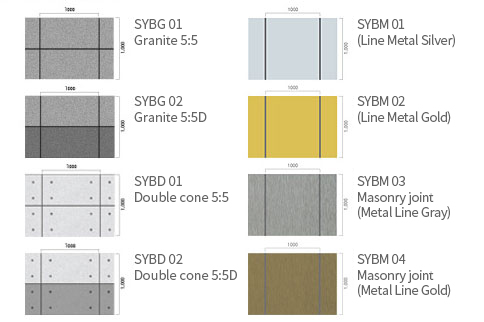

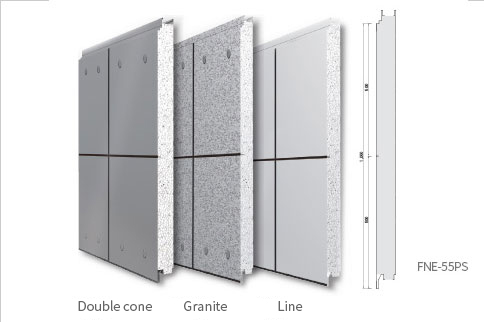

Elegant external appearance

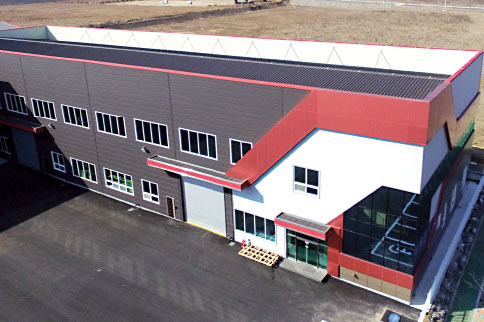

It has excellent processability so elegant external appearance of a building can be expressed with diverse patterns.
Flame retardant EPS Panel
Safety against a fire
it has a certified test report for its flame-retardant performance and quasi-noncombustible performance, and a risk of a fire of the external panel for a building upon a fire is minimized.
-

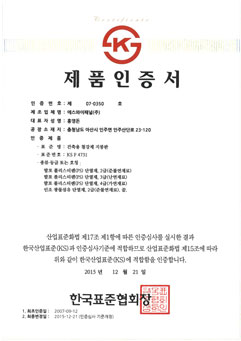

Certification
-
Test report
-
A Certificate of a Fire-resistant StructureA Certificate of a Resistance to FlameInsulation Performance
-
Specification
-
Wall

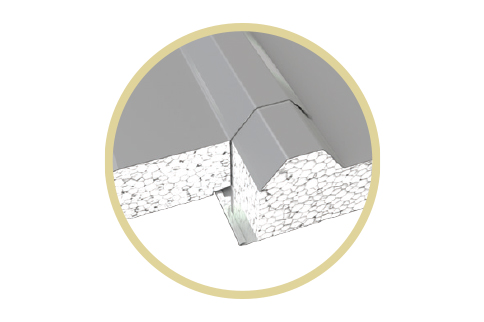

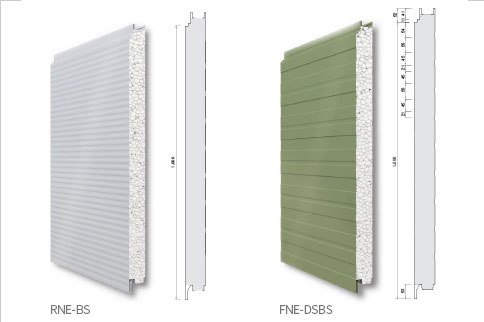

Classification Specification Surface material for Both Sides External 0.4~0.5mm PPGI Internal 0.4~0.5mm PPGI Insulator EPS, Flame-Resisting EPS Width 1,000mm Production Length 2~13m (Recommended Length : 7m) Production Thickness 50, 75, 100, 125, 150, 175, 200, 225, 250, 275mm Roof

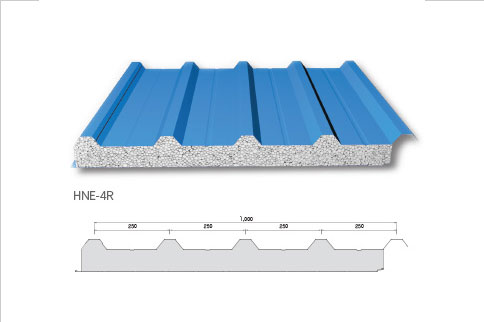

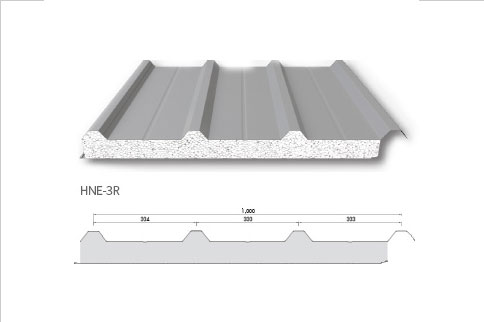

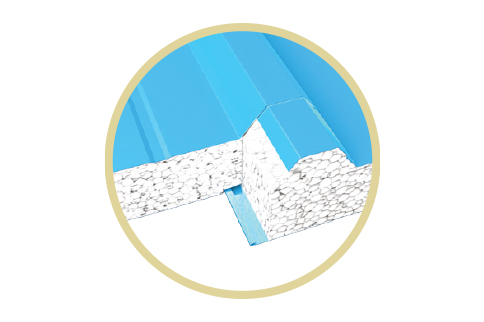

Classification Specification Surface material for Both Sides External 0.5mm PPGI Internal 0.4~0.5mm PPGI Insulator EPS, Flame-Resisting EPS Width 1,000mm Production Length 2~12m Production Thickness 50, 75, 100, 125, 150, 175, 200, 225, 250, 260, 275, 300mm Since there may be somewhat differences by factories or products, contact the business department for details. Surface undulation may be caused according to thickness of a steel coil and the the shape of a product but there is no difference in performance of the product.
-

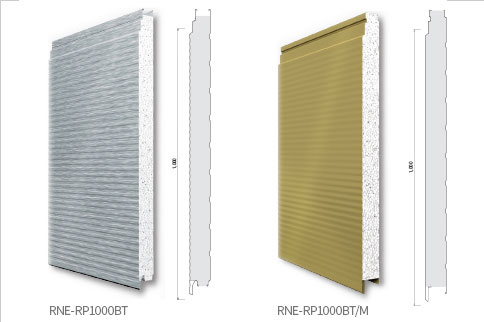

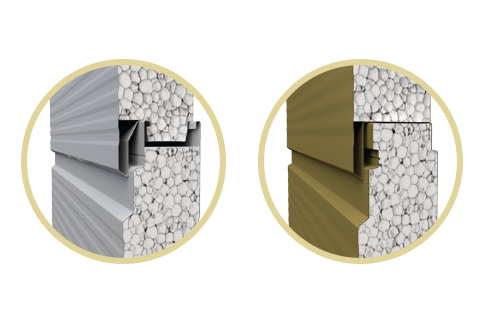

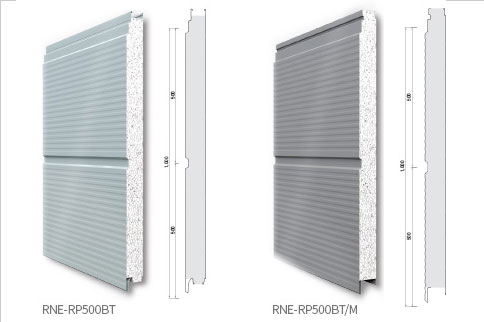

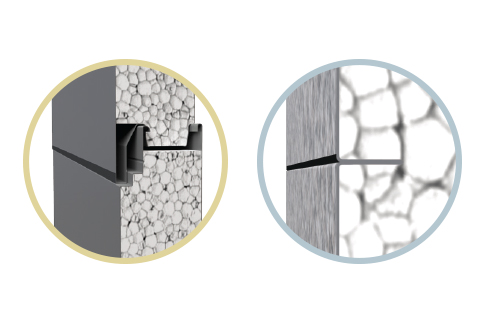

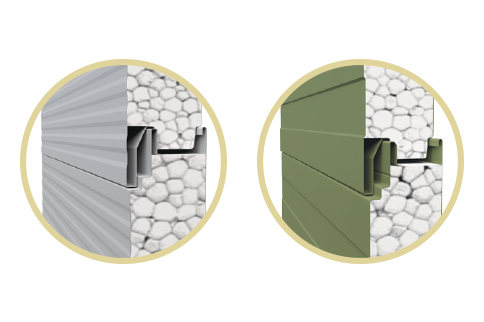

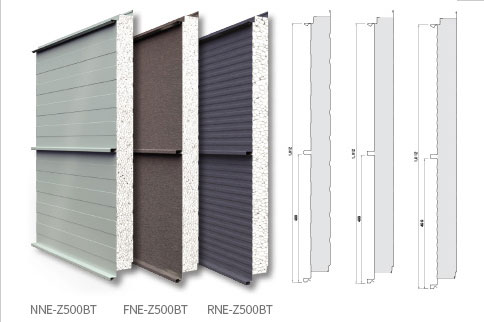

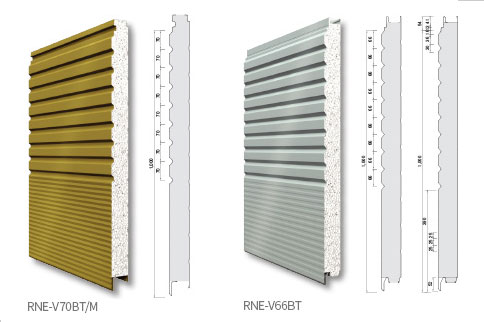

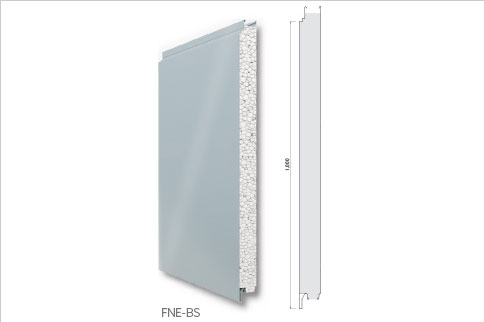

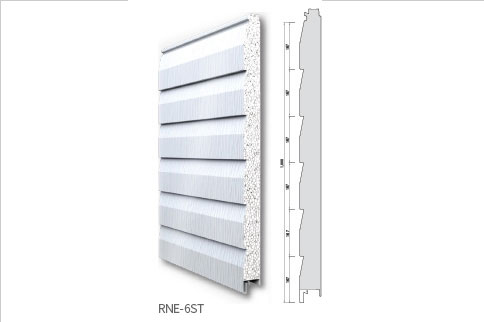

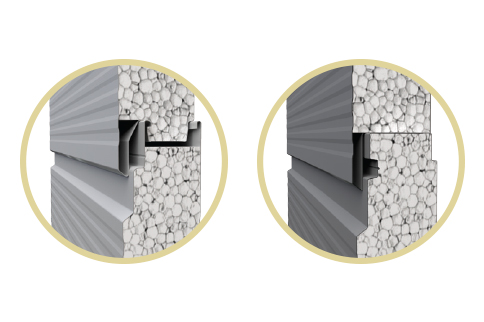

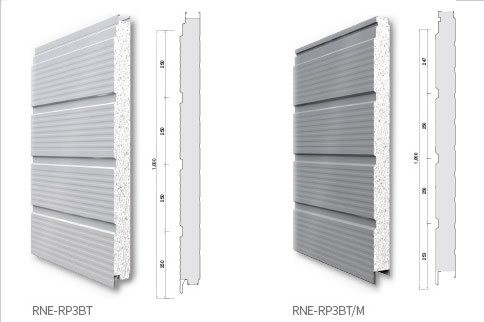

Boltless Panel
-

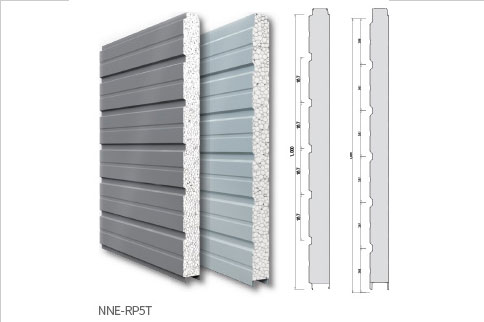

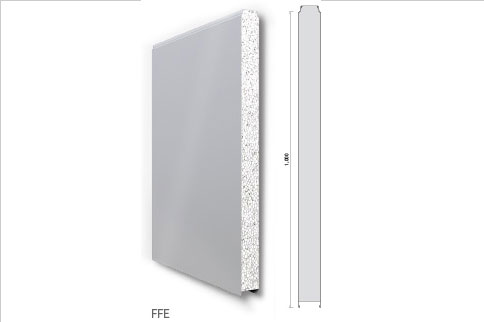

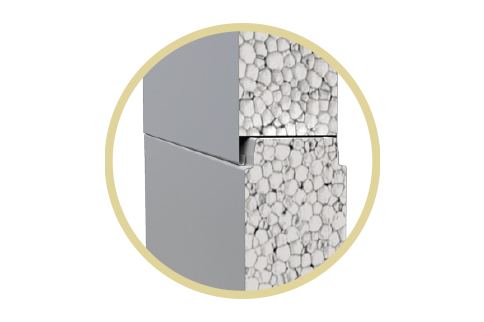

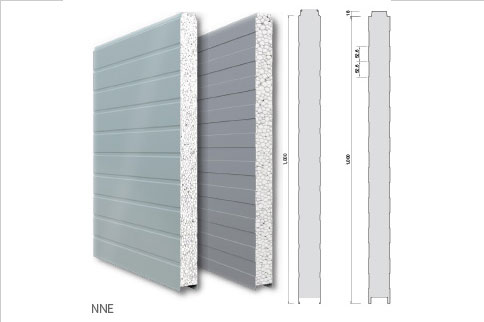

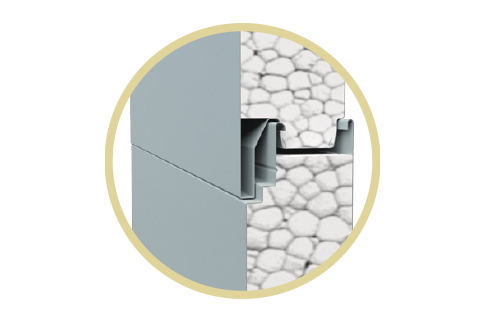

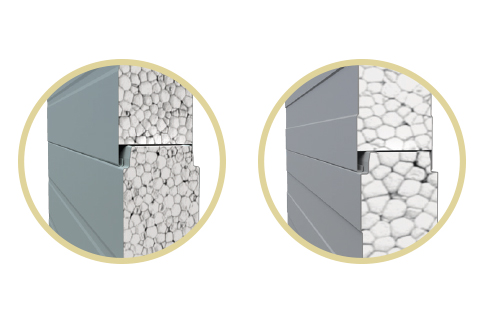

General Panel
