The Tech Board which is a rigid polyurethane foam insulator of SY
is the PIR insulator that fire retardancy and heat resistance, low smoke etc. are improved while maintaining advantages of the existing polyurethane(PUR) intactly by using Polyisocyanurate(PIR) which has the most excellent insulation effect as an insulation material.
Usage of Product
Architecture FieldUsed as an insulator for a roof, a wall and a floor of all buildings.
Other FieldsUsed as an insulator for cold storage and refrigerated storage.
Product Inquiries 070-4808-2321
Features of Product
The most excellent insulation performance
Environment friendliness
Safety against a fire
- Product Information
-
Affiliate Information
-
Factory #2 in Inju
75-82 Injusandan-ro, Inju-myeon, Asan-si, Chungcheongnam-do
Tel. 041-549-1134 -
Features of Product
-
The most excellent insulation performance

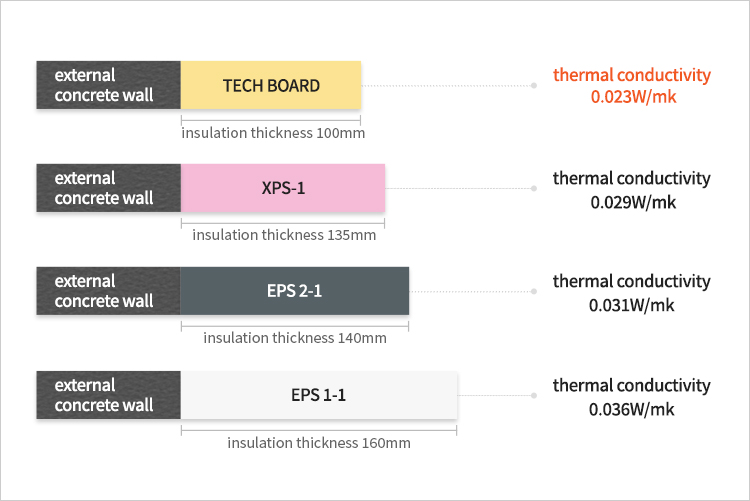

It has the lowest thermal conductivity (0.019W/mK based on KS M 3809) among commercialized insulators for buildings and it is possible for construction with thin thickness compared to other organic〮inorganic insulators so it also has excellent space utilization.
Environment-friendliness
It uses environment-friendly materials that acquired environment mark certification and environment-friendly architectural materials certification and that do not release organic compound(TVOC, HCHO-formaldehyde, benzene etc.).
Safety against a fire
It satisfies energy saving and safety against a fire of a building of FM and UL etc. that are international certification institutes and solved a problem of combustibility.
-
Certification
-
Test report
-
Specification
-
Type
Type Description Feature Insulating Board Class 1 #1 An insulator with a shape of a board that does not have a formed surface material with polyisocyanurate, polyol and a foaming agent as main materials. High Density #2 Medium Desity #3 Low Density Insulating Board Class 2 #1 An insulator with a shape of a board that a surface material that is formed in a shape of a sandwich by making foams between surface materials and by self-adhesive is attached with polyisocyanurate, polyol and a foaming agent as main materials. High Density #2 Medium Density #3 Low Density Featrues
Type Apparent Density
(㎏/㎥)Thermal Conductivity
(W/mk)Bending Strength
(N/㎠)Compressive Strength
(N/㎠)Absorption
(g/100㎠)Combustibility Insulating Board Class 1 #1 45 or higher 0.024 or lower 35 or higher 30 or higher 3.0 or lower 연소 시간 120초 이내이며 연소길이가 60mm 이하 #2 35 or higher 0.024 or lower 25 or higher 20 or higher #3 25 or higher 0.025 or lower 15 or higher 10 or higher Insulating Board Class 2 #1 45 or higher 0.023 or lower 35 or higher 15 or higher 3.0 or lower #2 35 or higher 0.023 or lower 25 or higher 20 or higher #3 25 or higher 0.024 or lower 15 or higher 15 or higher Specification
Type 20~45 50~120 125 or longer Thickness Allowance ±2 ±3 To be determined Width Allowance 1,000±5 Length Allowance 1,800~3.100±5(Unit of 10mm) 1. Basic Dimension: Thickness X Width X Length = Thickness X 1,000 X 2,000
2. The dimension of the ordered product may be determined according to consultation between a consignee and a transferor. At the moment, the allowable error shall comply with the above table.
