카카오Glass Wool & Mineral Wool Panel
It is an external panel for a building which has glass wool and mineral wool as panel core that are inorganic insulators between pre-painted got dip galvanized steel sheets which are both external and internal surface materials and its safety against a fire is very excellent, and is a high perfor-mance product equipped with durability that is strong against deterioration even though a long time has passed.
Features of Product
Safety against a fire
Excellent sound-Absorbing Effect
Excellent Durability
Excellent Insulation
- Product Information

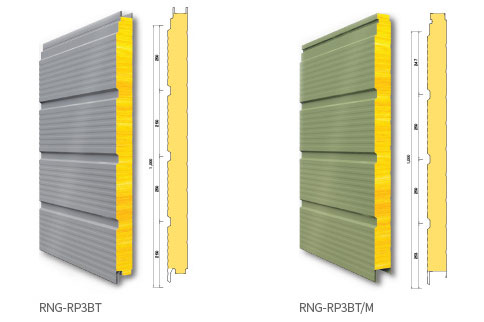

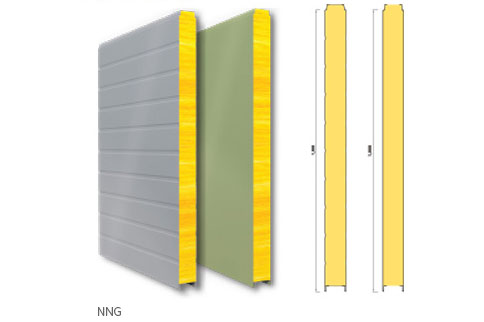

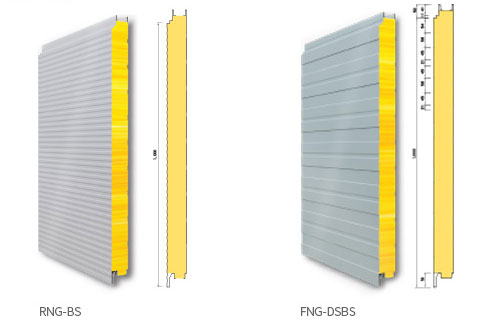

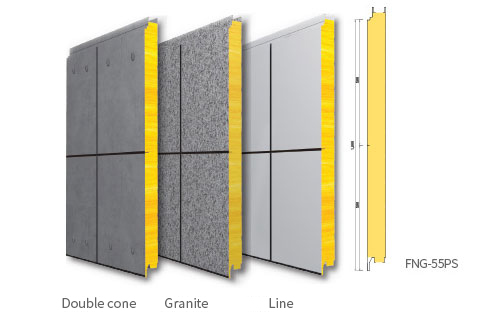

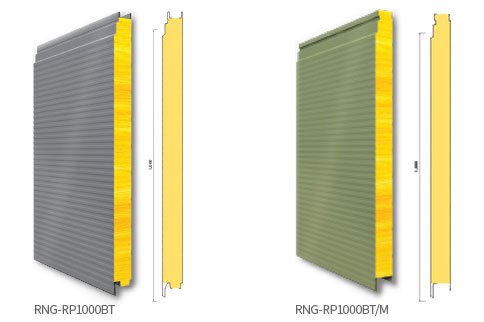

- Product Image
-
Features of Product
-

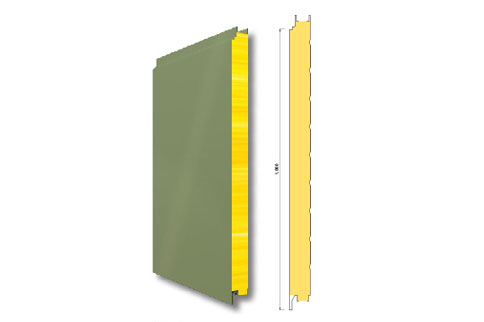

Glass Wool Panel
An inorganic insulator made of thin and homogeneous fabric of pure rough glass.
Safety against a Fire
Proliferation of a fire is prevented by using an insulator which is an incombustible material, and it is proper for a fire-resis-tant structure or a fire zone since it does not create any toxic gas which is harmful to human body.
Excellent sound-absorbing effect
Since it is formed with porous materials, the wave of a sound is absorbed at the inside on its own and has an excellent sound-absorbing effect.
Mineral Wool Panel
An artificial mineral fabric insulator that calcium silicate minerals are melted and fiberized at high temperature.
Excellent durability
It is an inorganic product and there is almost no variation of tis shape and no corrosion even after a long tome has passed and since it tis made of glass wool which has a strong power of restitution and tensile strength, it has excellent durability against impacts and pressure, vibration.
Excellent insulation
It secures excellent insulation performance thanks to fine air layers between thin and homogeneous fabric.
-
Certification
-
The glass wool is a fire-resistant core and gas a function of preventing proliferation of a fore. Our glass wool panel acquired a certification of a fire-resistant structure for 1 hour with its own excellent performance from Korea Institute of Construction Technology. The certification of a fire-resistant structure for 1 hour complies with the standard related to domestic construction that requires prevention of proliferation of a fire as well as securing structural perfor-mance related to a fire.
-
A certificate of a fire-resistant structure
(100T, 64K) -
A certificate of a fire-resistant structure
(123T, 48K) -
A certificate of a fire-resistant structure
(123T, 64K)
-
-
Test report
-
Safety against a Fire
-
Incombustible 100T
-
Incombustible 125T
-
Incombustible 150T
-
Incombustible 200T
-
Incombustible 225T
-
Quasi-noncombustible 50T
-
Quasi-noncombustible 75T
-
Quasi-noncombustible 100T
-
Quasi-noncombustible 125T
-
Quasi-noncombustible 135T
-
Quasi-noncombustible 150T
-
Quasi-noncombustible 160T
-
Quasi-noncombustible 180T
-
Quasi-noncombustible 200T
-
Quasi-noncombustible 250T
Insulation PerformanceSound Absorption -
-
Specification
-
Wall
Classification Specification Surface material for Both Sides External 0.5~0.8mm PPGI Internal 0.40~0.5mm PPGI Insulator G/W(48,64,74kg/㎥)

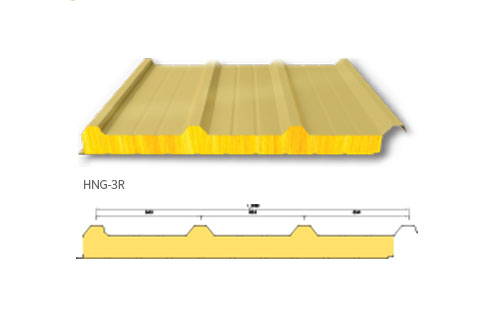

M/W(80~110kg/㎥)Width 1,000mm Production Length 2 ~ 14m (Recommended Length : 7m) Production Thickness 50, 75, 100, 125, 130, 150, 160, 180, 200mm 지붕
Classification Specification Surface material for Both Sides External 0.5~0.8mm PPGI Internal 0.40~0.5mm PPGI Insulator G/W(48,64,74kg/㎥)
M/W(80~110kg/㎥)Width 1,000mm Production Length 2 ~ 22m Production Thickness 50, 75, 100, 125, 130, 150, 160, 180, 200mm Since there may be somewhat differences by factories or products, contact the business department for details. Surface undulation may be caused according to thickness of a steel coil and the the shape of a product but there is no difference in performance of the product.
-

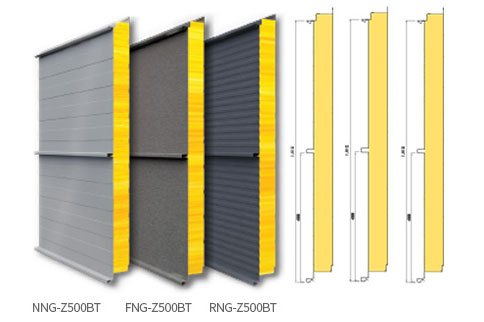

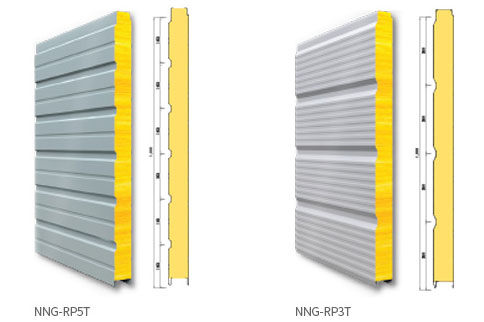

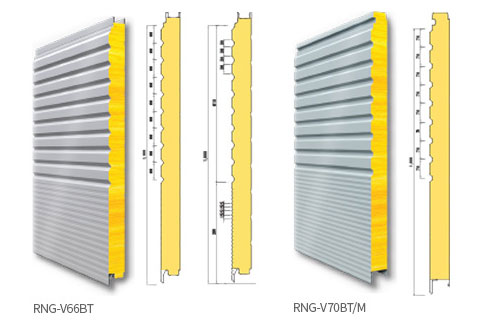

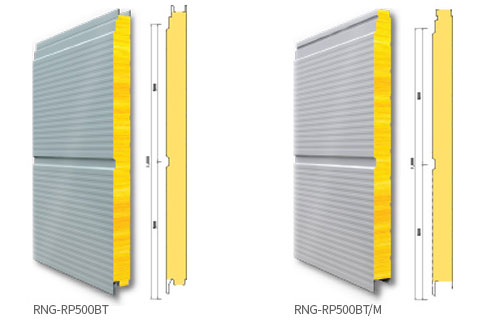

Boltless Panel
-
