KakaoMetal panel

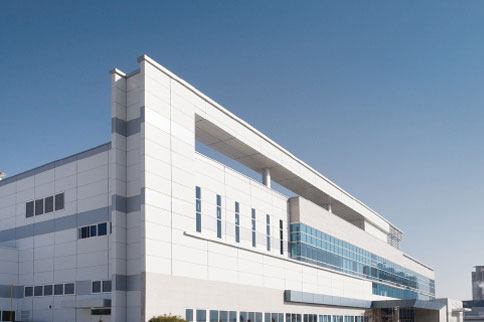

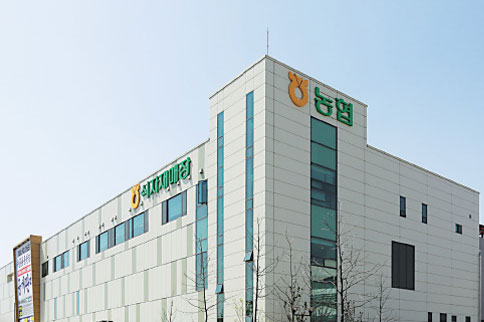

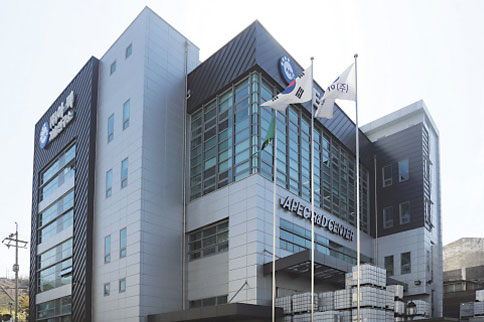

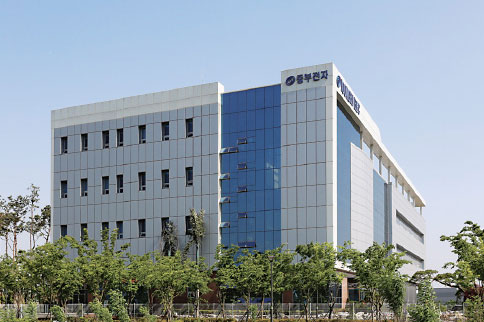

It is a product that can express a tidy and modern landscape better than stone finishing or other wet methods, which is hard to be expressed by general external panels for a building. With economic prices in addition to multiple functions, it is widely used for public buildings such as government office buildings, culture centers and military bases etc.
Features of Product
Prevention of internal condensation
Safety against a fire
Elegant external appearance
Inculation
- Product Information
- Product Image
-
Features of Product
-
Prevention of internal condensation
It is a product that solves a problem of corrosion of a structure due to condensation which is a problem caused in the existing other panels.
Safety against a fire
It uses PIR foam that acquired FM certification and UL certification etc. That are certifications on international safety evaluation and glass wool which is an incombustible material as panel core.
Elegant external appearance
It is characterized by convenient constructability and sophisticated external appearance that can create a beautiful building within a short period of time with low costs.
Insulation
It is advantageous for energy saving by using PIR foam insulation core that is commonly used for cold storage etc.
-
Specification
-
PIR Metal Panel
Classification Specification Surface material for Both Sides External 0.8mm PPGI Internal 0.45~0.5mm PPGI Insulator PUR, PIR(35~45kg/㎥) Width Joint S 600, 700, 800, 900, 1000mm Joint M 500, 600, 700, 800, 900, 1000mm Recommended length 20mm Production thickness 50, 60, 75, 100, 125mm Glass Wool Metal Panel
Classification Specification Surface material for Both Sides External 0.8mm PPGI(fluororesin / silicone polyester) Internal 0.45~0.5mm PPGI(fluororesin / silicone polyester) Insulator G/W(48~74kg/㎥), M/W(80~110kg/㎥) Width Joint S 600, 700, 800, 900, 1000mm Joint M 900, 1000mm Recommended length 20mm Production thickness 50, 75, 100, 125, 150mm Since there may be somewhat differences by factories or products, contact the business department
-

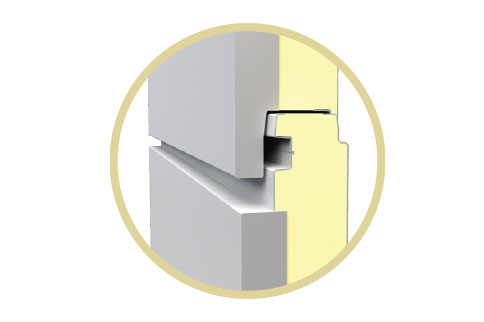

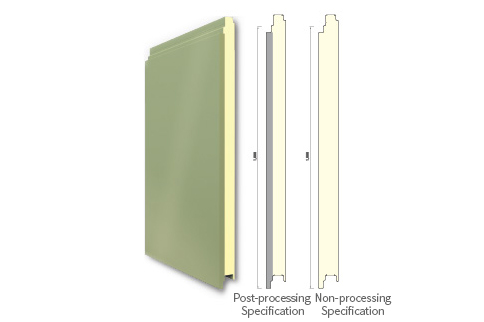

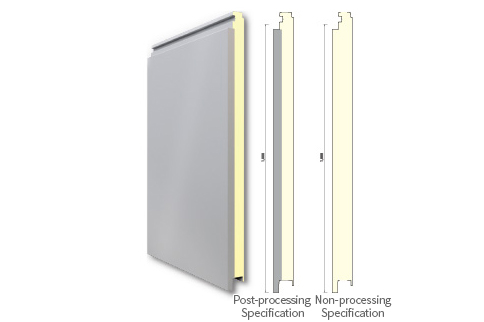

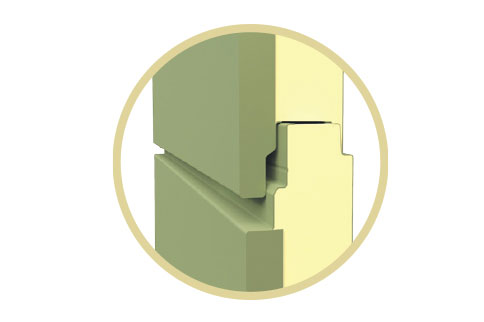

Polyurethane Metal Panel
-

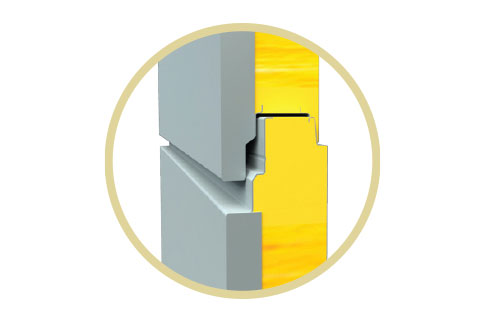

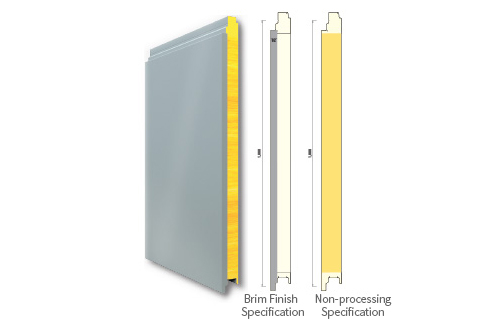

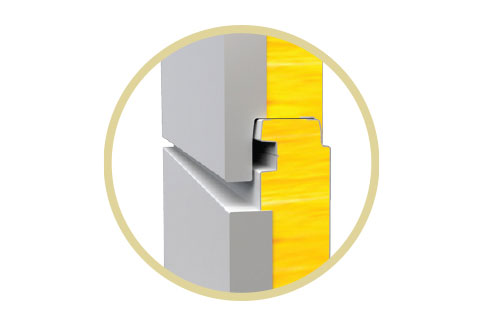

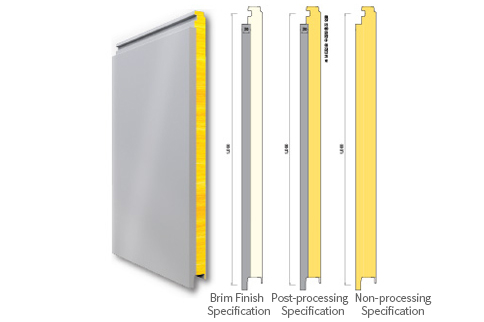

Glass Wool(Mineral Wool) Metal Panel
