Polyurethane Panel

It is an external panel for a building which has rigid polyurethane foam (PUR, PIR) between pre-painted got dip galvanized steel sheets which has the best insulation as panel core and has a function preventing condensation by its excellent insulation performance, and is a high performance product equipped with constructability with its light specific gravity and safety against a fire and high strength.

Features of Product

Excellent insulation performance

Safety against a fire

Convenient constructability

Product Information

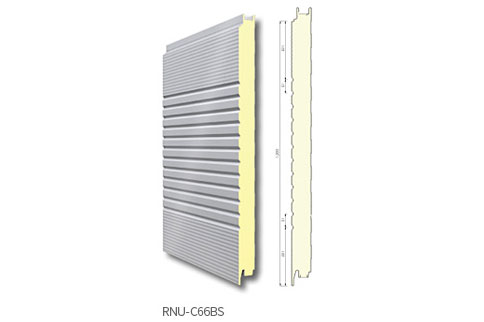

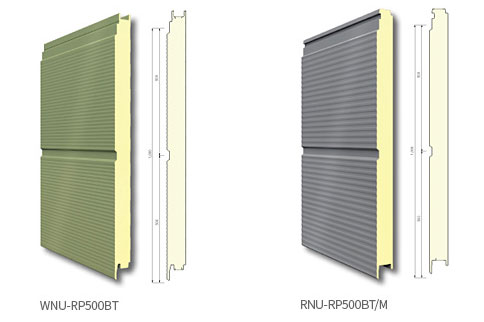

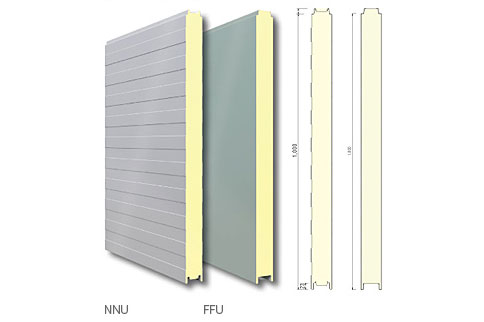

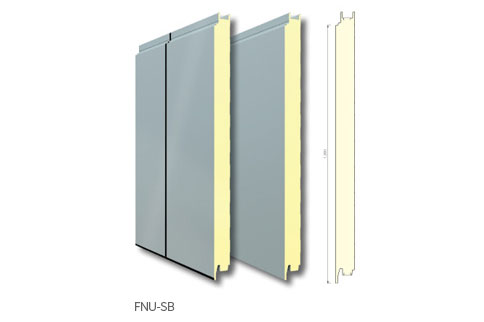

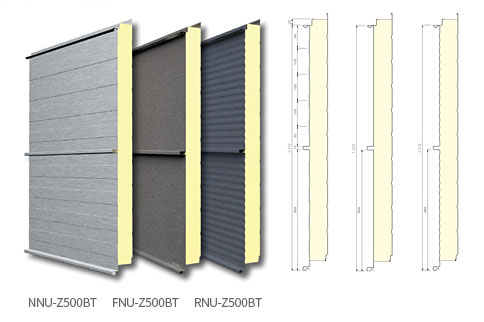

Product Image

Features of Product
PUR (Poly Urethane Resin Foam) Panel

Excellent insulation performance

It is advantageous for energy saving since it has low thermal conductivity which is less than 0.02W/mk among insulators with Class ‘Ga’ in terms of the Korea’s building code. It is excellent in preventing condensation, and commonly used in cold storage, refrigerated storage as well.

Convenient constructability

In case of rigid polyurethane foam, calculation of loads and construction are easy and convenient thanks to its high strength and light specific gravity.

PIR (Poly Isocyanurate Resin Foam) Panel

Safety against a fire

Since it has a certified test report for its flame-retardant performance and limited-combustible performance, the risk of a fire of an external panel for a building upon a fire is minimized.
Certification
The panel of the company satisfies FM certification and UL certification that are the highest-level standard and its technical skills are recognized interna-tionally. It has FM 4880 certification (safety against a fire), FM 4881 certification (safety against a fire on external wall and structural design), FM 4471 certifi-cation (safety against a fire on a roof and structural design) and UL 723 certification (safety against a fire).

FM Certification

UBS 26-3 ROOM Test

ASTM E108 Test

UL Certification

ASTM E84 Test

ASTM E84 Test
Test report
Insulation Performance
- Wall 50T
- Wall 75T
- Wall 100T
- Wall 125T
- Wall 150T
- Roof 50T
- Roof 75T
- Roof 100T
- Roof 125T
- Roof 150T
Safety against a Fire
Specification

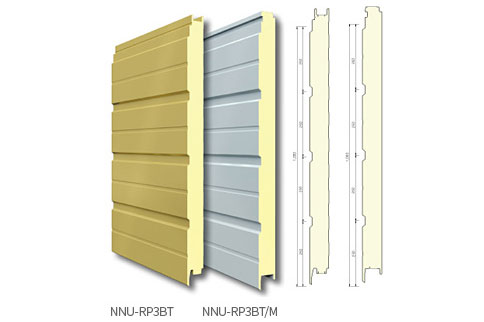

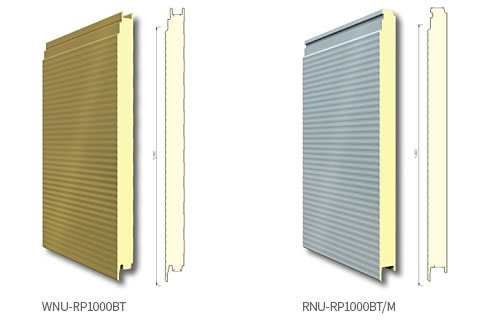

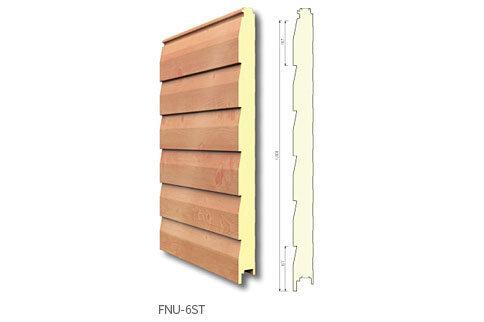

Wall

Classification	Specification
Surface material for Both Sides	External	0.45~0.8mm PPGI (PVDF/Polyester)
Surface material for Both Sides	Internal	0.45~0.5mm PPGI (PVDF/Polyester)
Insulator	PUR, PIR (35~45kg/m³)
Width	1,000mm
Production Length	2 ~ 14m (Recommended Length : 7m)
Production Thickness	Boltless	50, 75, 100, 125mm
Production Thickness	partition	40, 50, 75, 100, 125, 150mm

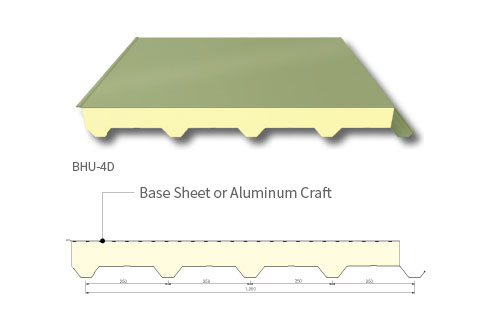

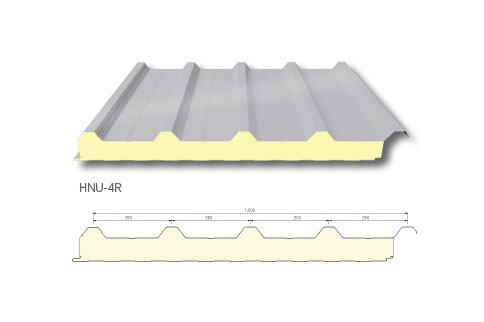

Roof

Classification	Specification
Surface material for Both Sides	External	0.45~0.8mm PPGI (PVDF/Polyester)
Surface material for Both Sides	Internal	0.45~0.5mm PPGI (PVDF/Polyester)
Insulator	PUR, PIR (35~45kg/m³)
Width	1,000mm
Production Length	2 ~ 17.5m
Production Thickness	50, 75, 100, 125, 150mm

Since there may be somewhat differences by factories or products, contact the business department for details. Polyurethane panels may have surface undulation in terms of features of polyurethane but there is no difference of the product.
